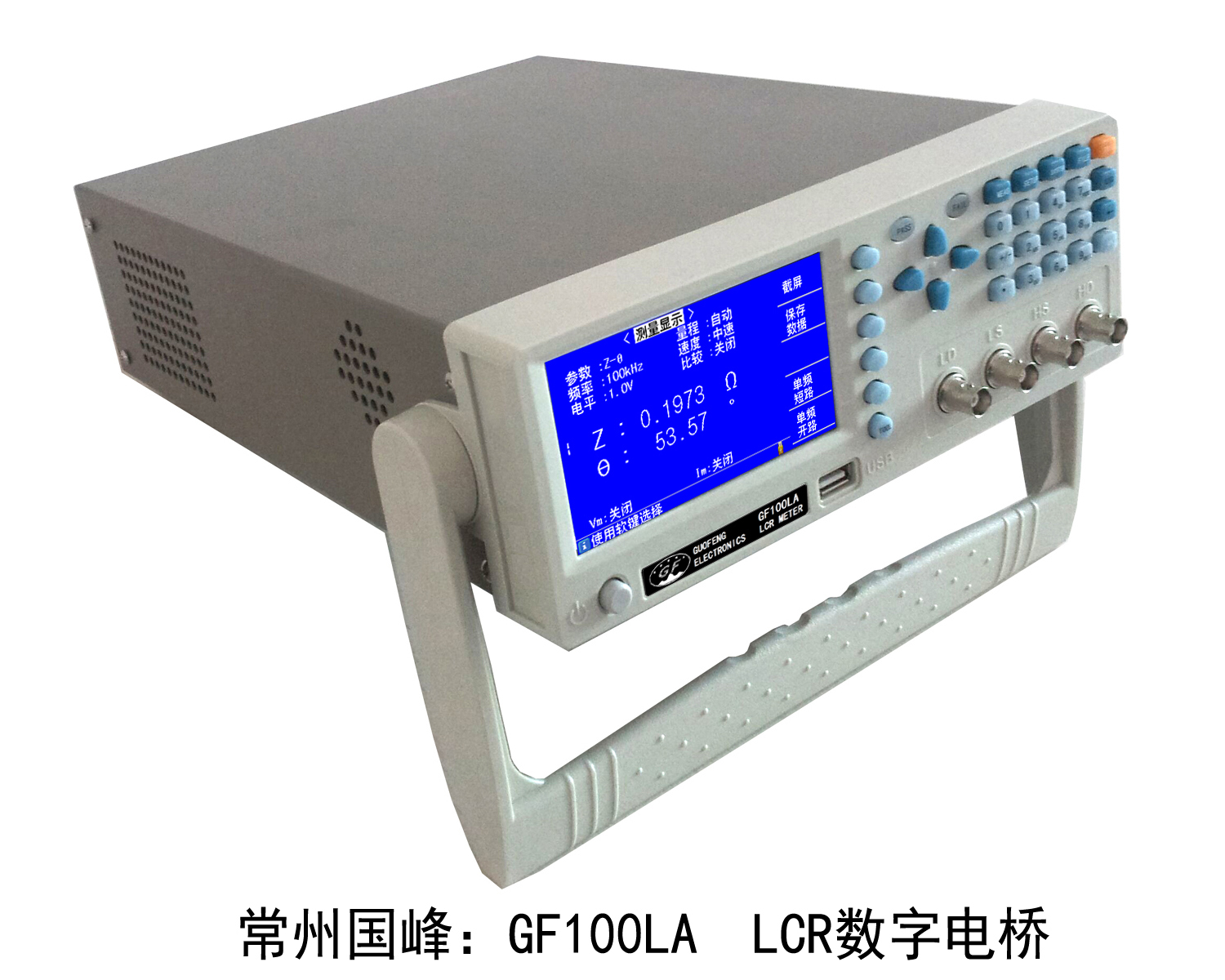

GF100LA is a multifunctional LCR precision digital bridge for inspection of all kinds of electronic components.Using 4.3 inches LCD TFT display. It is a high-speed, broadband, 5 bit test resolution of the impedance measuring instrument, 50Hz-100kHz multi frequency points and 0.1% accuracy can meet the requirements of various occasions component parameters detection. Is a high cost of quality testing equipment.
Performance characteristics
■ 32 bit core processor, the data is completely compared to foreign first-class equipment
■ 4.3 inch color TFT display
■ 30 Ω, 100 Ω, two different signal source output impedance
■ 5 BIN comparator
■ When closing the instrument, the test conditions are automatically saved.
■ 100 files can be saved inside the instrument, and save the file to the U disk
■ Double operating system in Chinese and English
■ Using U disk, upgrade instrument operating system
■ Can save measurement data and screen graphics to U disk,U disk using FAT16 and FAT32 format
■ Standard interface: RS232C、HANDLER、USB HOST；
Optional interface: USB DEVICE，earphone interface，Foot switch interface、GPIB
|
Measurement function
|
|
LCR test parameters
|
| Z|, |Y|, C, L, X, B, R, G, D, Q, θ
|
|
Test frequency
|
50Hz,60Hz,100Hz,120Hz,1kHz,10kHz, 20kHz,40kHz，50kHz,100kHz
|
|
Basic measurement accuracy
|
0.1%
|
|
equivalent circuit
|
In series, parallel
|
|
Mathematics function
|
Absolute deviation, Percentage deviation
|
|
Range mode
|
AUTO, HOLD, Manual selection
|
|
Trigger mode
|
INT, EXT
|
|
Speed（≥1kHz）
|
FAST: less than 30 times per second,
MED : 10 times per second,
SLOW: 3 times per second,
|
|
Average number
|
1—255
|
|
Delay Time
|
0—6s,1ms step
|
|
Calibration function
|
Quick Clear / SINGLE SHORT /SINGLE OPEN
|
|
Test terminal
|
Five terminals
|
|
Display mode
|
Direct display，Δ，Δ%，V/I
|
|
Monitor
|
5 bit resolution, 4.3 inch LCD display
|
|
test signal
|
|
Output impedance
|
30 Ω,100Ω
|
|
Test signal level
|
0.1V、0.3V、1V ; Accuracy：5%
|
|
Display range
|
|
|Z|, R, X
|
0.01mΩ —99.999 MΩ
|
|
|Y|, G, B
|
0.0001µS —99.999 S
|
|
C
|
0.0001 pF —9.9999 F
|
|
L
|
0.0001 µH —999.99 H
|
|
D
|
0.0001 —9.9999
|
|
Q
|
0.0001 —99999
|
|
θ(DEG)
|
-179.99º—179.99 º
|
|
θ(RAD)
|
-3.14159 — 3.14159
|
|
Other
|
|
Comparator function
|
Five BIN sorting function（BIN1,BIN2,BIN3,AUX,OUT）
|
|
storage
|
Internal: 105; external can save 500
|
|
Interface
|
Standard:RS232C,USB HOST,HANDLER、
Optional:USB DEVICE，headphone jack，Foot switch interface ,GPIB
|
