200kHz LCR Meter

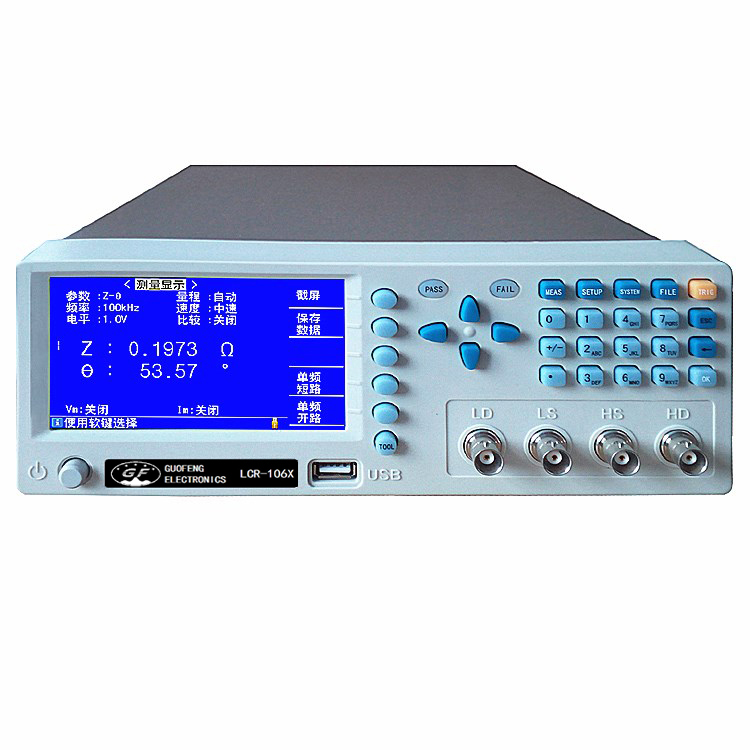

LCR-106X is a multifunctional LCR precision digital bridge for inspection of all kinds of electronic components.Using 4.3 inches LCD TFT display. It is a high-speed, broadband, 5 bit test resolution of the impedance measuring instrument, 40Hz-200kHz multi frequency points and 0.1% accuracy can meet the requirements of various occasions component parameters detection. Is a high cost of quality testing equipment.

Performance characteristics
■ 32 bit core processor, the data is completely compared to foreign first-class equipment
■ 4.3 inch color TFT display

■ 30 Ω, 100 Ω, two different signal source output impedance
■ 5 BIN comparator

■ When closing the instrument, the test conditions are automatically saved.
■ 100 files can be saved inside the instrument,and save the file to the U disk
■ Double operating system in Chinese and English
■ Using U disk, upgrade instrument operating system
■ Can save measurement data and screen graphics to U disk,U disk using FAT16 and FAT32 format

■ Standard interface: RS232C,HANDLER,USB HOST,

Optional interface: USB DEVICE，earphone interface，Foot switch interface,GPIB

Test parameter	L,C, R, \| Z\|, D, Q，X，ESR，θ（Deg），θ（Rad）
Test frequency	LCR-106X:40Hz,50Hz,60Hz,75Hz,100Hz,120Hz,150Hz,200Hz,250Hz,300Hz,400Hz,500Hz,600Hz,750Hz,800Hz,1kHz,1.5kHz,2kHz,2.5kHz,3kHz,4kHz,5kHz,6kHz,7.5kHz,10kHz,12kHz,15kHz,15.7kHz,16.2kHz,20kHz,25kHz,30kHz,40kHz,50kHz,60kHz,66.6kHz,75kHz,100kHz,120kHz,150kHz,200kHz,
Basic measurement accuracy	0.1%
Test signal level	0.05V,0.1V,0.2V,0.25V,0.3V,0.4V,0.5V,1V
Equivalent circuit	In series, parallel
Mathematics function	Percentage deviation
Range mode	Automatic, hold, manual selection
Trigger mode	Internal, external
Measuring speed（≥1kHz）	Fast: the fastest 30 times per second, Medium: 10 times per second Slow: 3 times per second
Average number of times	1—255
Delay Time	0—6s, 1ms step by step
Calibration function	Open circuit/short circuit/quick clearing
Display mode	Direct reading，Δ%，V/I（To monitor the measured voltage and current）
Monitor	5 bit display, 4.3 inch color LCD display
Output impedance	30 Ωor 100Ω can choose
Display range
\|Z\|, R，X，ESR	0.1mΩ —99.999MΩ
C	0.01 pF —9.9999F
L	0.01 µH —99999 H
D	0.0001 —9.9999
Q	0.0001 —9999.9
θ（Deg）	-179.99° —179.99°
θ（Rad）	-3.1416 —3.1416
Δ%	-999.99% —999.99%
Comparator Function	5 document sorting function
Storage	100 files can be saved inside the instrument, and save the file to the U disk
Interface	Standard interface: RS232C,HANDLER,USB HOST, Optional interface: USB DEVICE,earphone interface,Foot switch interface,GPIB
Size	265mm(W）100mm（H）340mm(L）
Weight	About 3.5 kg
